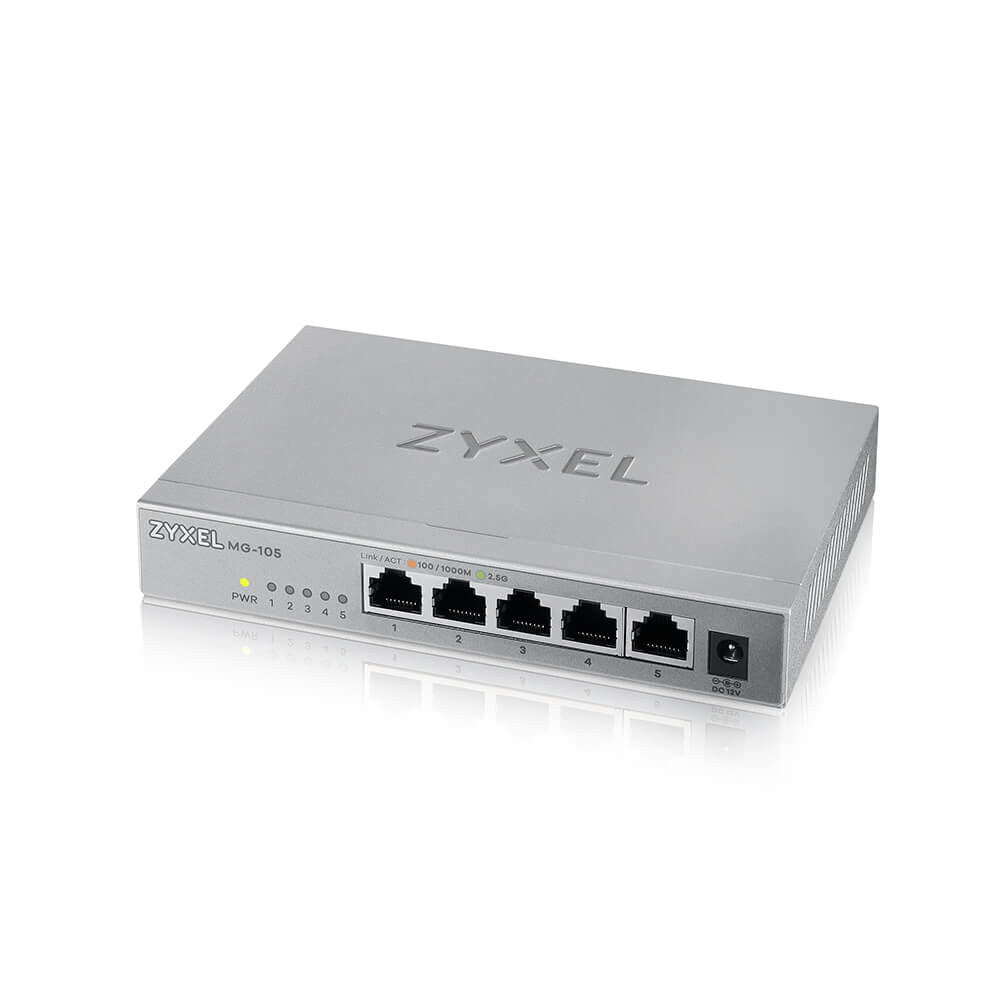

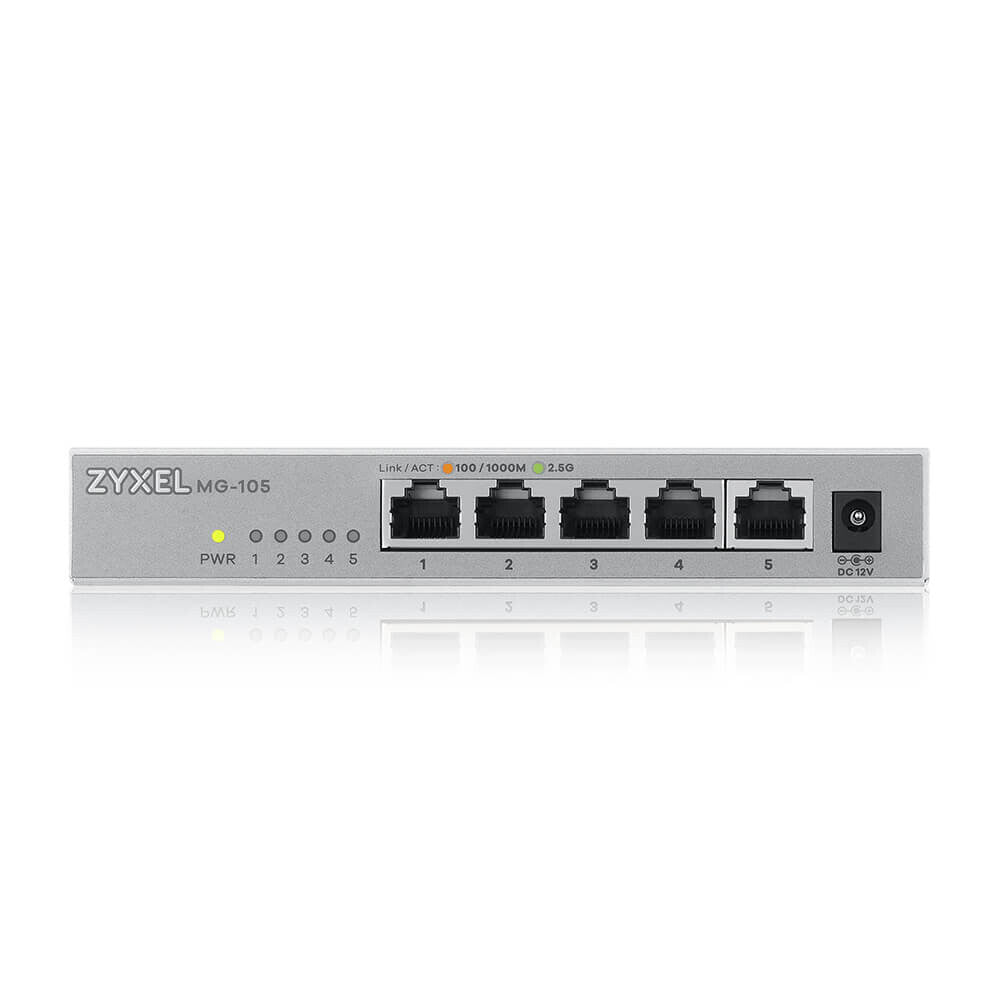

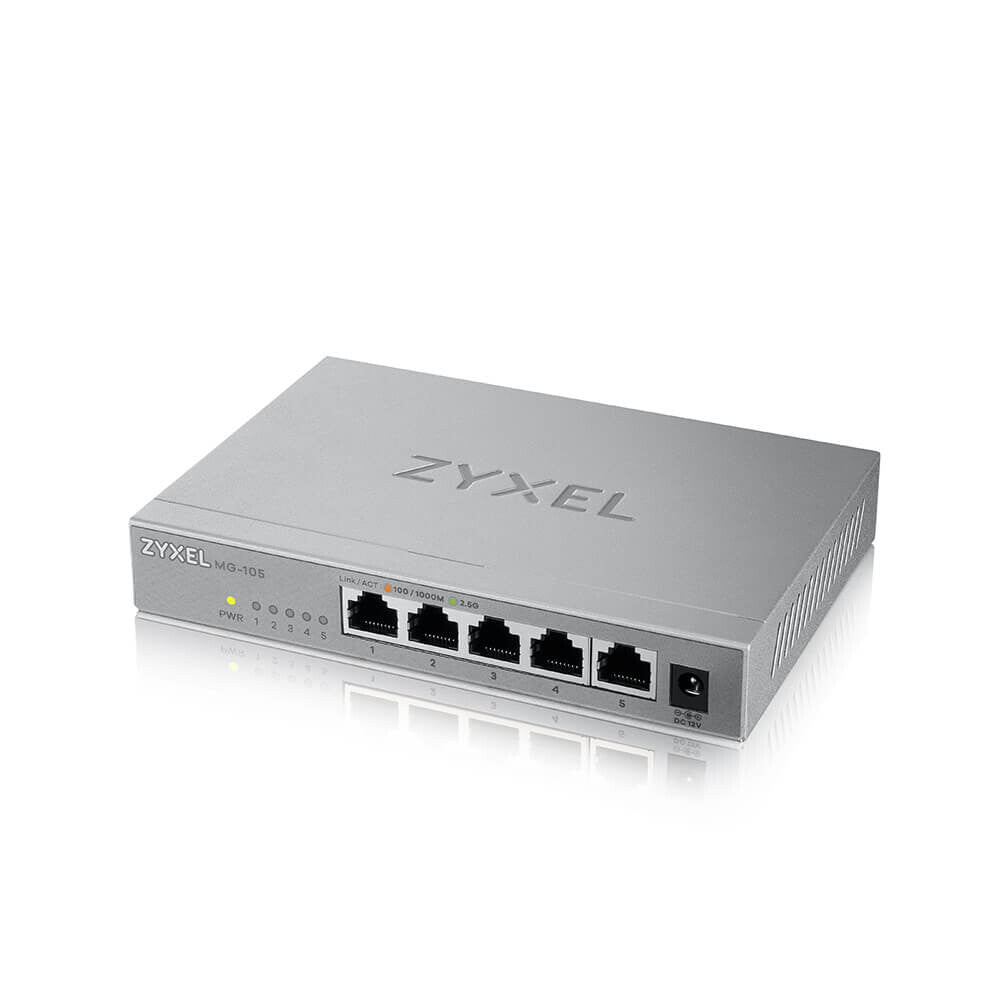

Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel
- Support 2.5GbE on all ports
- Instantly upgrade speed up to 2.5 times
- Increase home networking speed without extra cabling cost
- Access Internet just plug-andplay
- Silent and stable operation
Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.
Plug-n-Play, Enjoy High Speed Network
Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.
Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!
Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.
Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Forwarding rate | 18.6 Mpps |
| Switching capacity | 25 Gbit/s |
| MAC address table | 16000 entries |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Product colour | Steel |
| Rack mounting | No |
| Performance | |
|---|---|
| Fanless | Yes |
| Power | |
|---|---|
| Power consumption (max) | 9.34 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 460 g |
| Height | 26 mm |
| Depth | 110 mm |
| Width | 160 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 919.6 g |
| Package height | 79 mm |
| Package depth | 133 mm |
| Package width | 215 mm |
| Certificates | |
|---|---|
| Certification | CE, EAC, FCC, BSMI |
| Compliance certificates | CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
